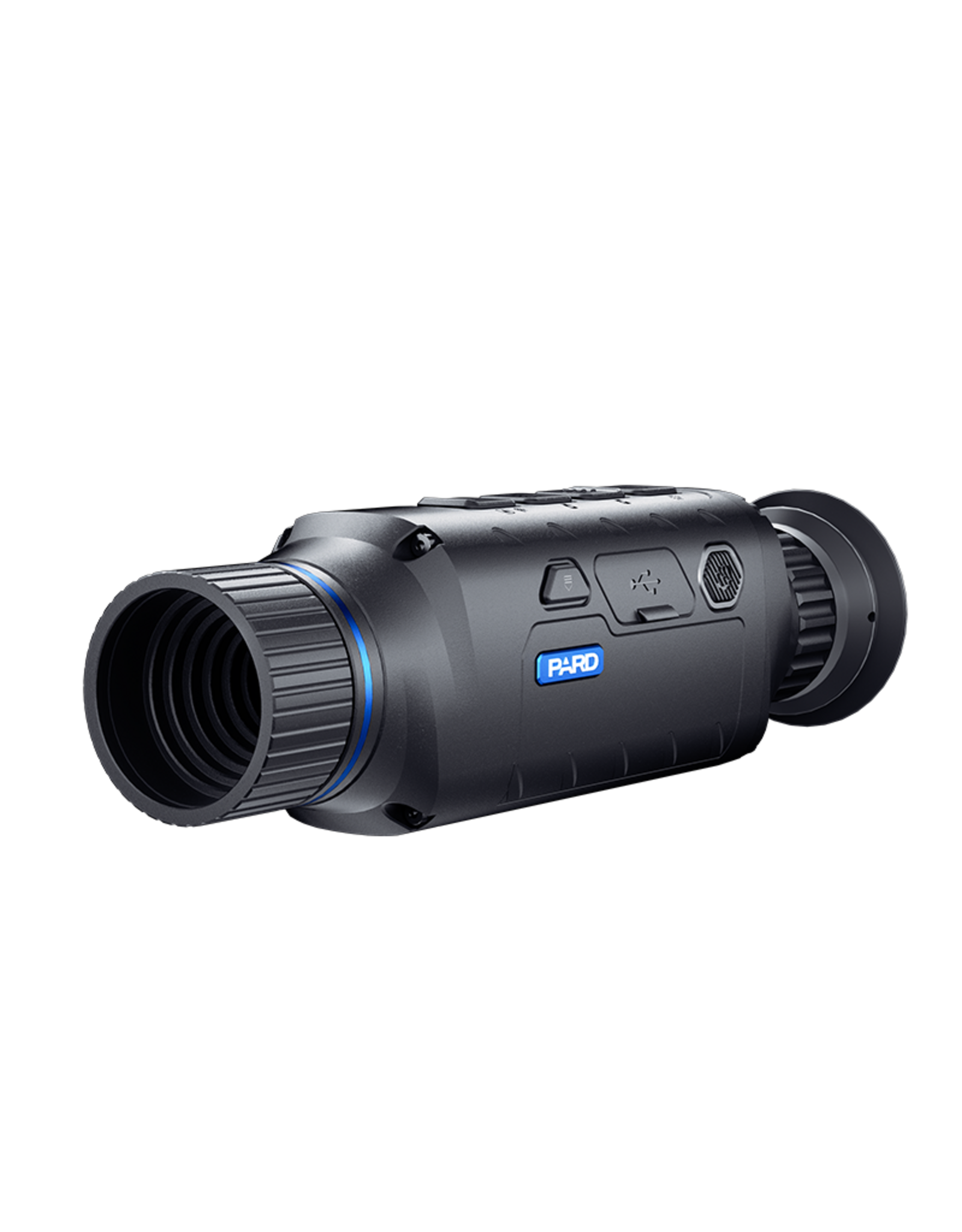

Leopard Cylindrical 256 thermal monocular, 16mm Objective
| Availability: | In stock (2) |
| Available in store: | Check availability |
Leopard Cylindrical 256 thermal monocular, 16mm Objective
NETD≤25mK
UNPARALLELED SENSITIVITY
Detect the subtle temperature difference below 0.025°C, enabling easier
identification of objects in various weather conditions.
SUPER TINY &
COMPACT DESIGN
With compact design and lightweight build (300g), it greatly enhances
comfort during observation, ensuring prolonged use without hand strain.
WIDE VIEW FOR EFFORTLESS SCANNING
Up to 16°(28m@100m) horizontal field of view, users can swiftly locate and track targets, enhancing observation efficiency and ensuring a more comfortable viewing experience.
5 IMAGE MODES
In order to highlight targets, Leopard 256 has developed 5 image
modes (WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY) for users to choose
from according to preferences.
REMOVABLE & RECHARGEABLE 18650 LI-ION BATTERY
Equipped with a removable 18650 battery which can be recharged up to
500 times, allowing for quick battery replacement during the journey.
SMART SCREEN RECORDING
Leopard 256 surpasses traditional video and image capture by
recording home screen icons alongside photos and videos,
offering richer information recording.
------------------------------------------------------------------------------------
Type Uncooled VOx(vanadium oxide)
Resolution(pixel) 256*192
Pixel Size(um) 12*12
NETD ≤25mK（0.025℃）
Frame Rate(Hz) 50
Detection Distance(m) 500/800
Optics
Objective Lens(mm) 11/16
Optical Magnification(x) 2/2.9
Digital Zoom(x) 2/4/6/8
Field of View (Horizontal) 15.9°/11°
Field of View (Vertical) 12°/8.2°
Field of View (Diagonal) 19.8°/13.7°
Eye Relief(mm) 20
Diopter Adjustment(D) ±5
Display
Type OLED
Resolution(pixel) 1024*768
Scene Mode City/Rain/Forest
Image Mode WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel) 1024*768
Photo Format .JPG
Video Resolution(pixel) 1024*768
Video Format .MP4
Storage Built-in EMMC (32 GB)
Image Engine Pard IREA
Main Function
PIP Yes
Gyroscope Yes
Loop Recording Yes
Hot Track Yes
E-compass Yes
Shutter Mechanical shutter
Microphone Yes
Firmware Upgrade Yes
Connections
USB Type-C Yes
WiFi Yes
Supported Apps PardVision2
Power Supply
Battery Type
Lithium Ion 18650*1
Output Voltage(V)
3.7
Operating time(h)
≤6
External Power Supply(V)
Type-C
Environmental Characteristic
Degree of Protection
IP67
Operating Temp(℃/℉)
-30 ~ +55 / -22 ~ +131
Measurement
Product Dimension(with LRF, L * W * H, mm) 172*36*48
N.W/pcs(with battery, g)
