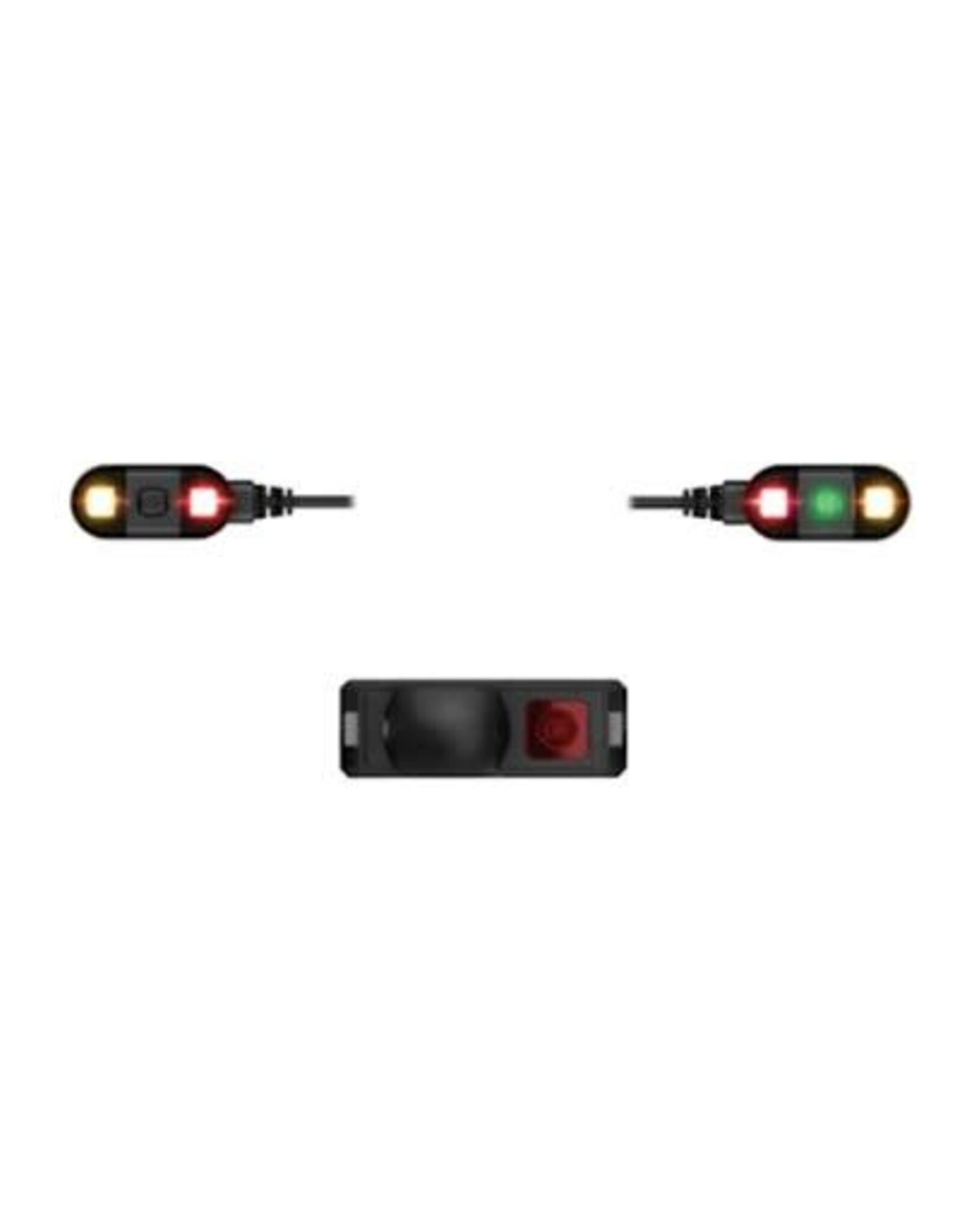

Garmin Catalyst™ R1
| Article number: | 10700 |
| Delivery time: | Ships in 3 to 5 days - not stocked in store |
RACE AND SEE
Gain a competitive edge with this high-performance racing radar. See visual alerts of vehicles approaching from behind to improve awareness and vehicle defense1 on the racetrack.
EXCEPTIONAL COVERAGE, RANGE AND PRECISION

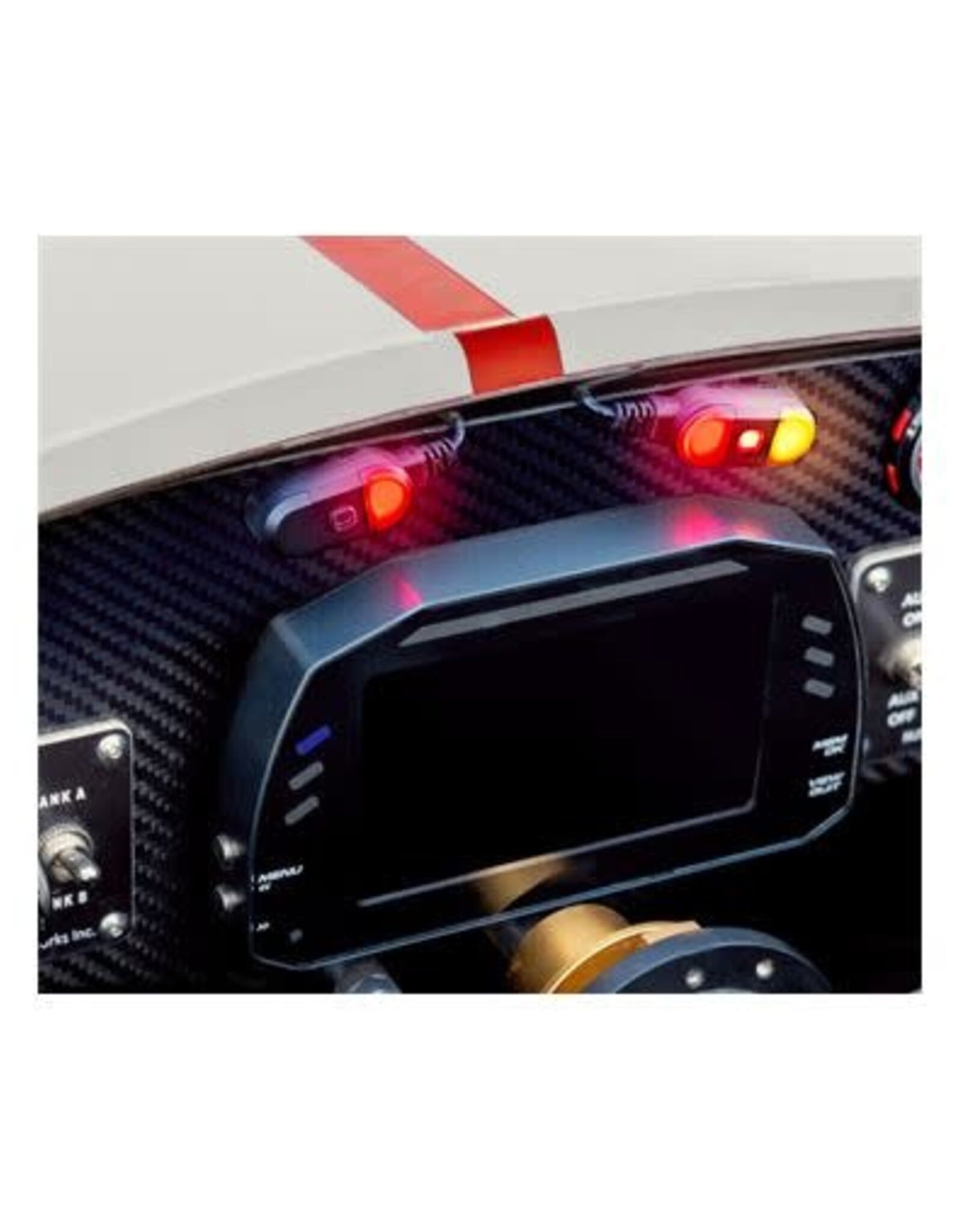

HEADS-UP INDICATOR LIGHTS PROVIDE AWARENESS WHILE KEEPING YOUR EYES ON THE RACETRACK

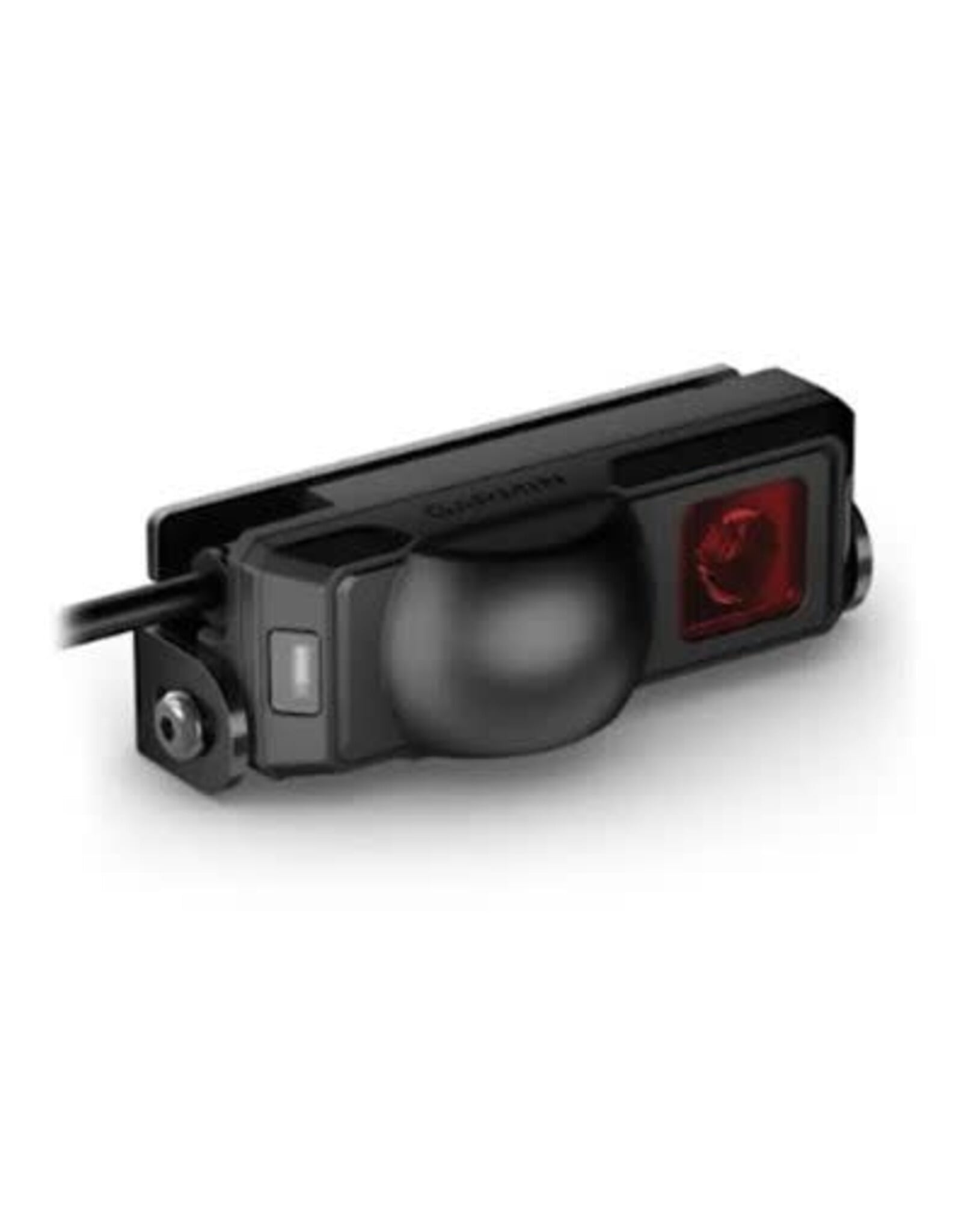

SMALL, COMPACT DESIGN
RUGGED IP67 DUST/WATER RATING

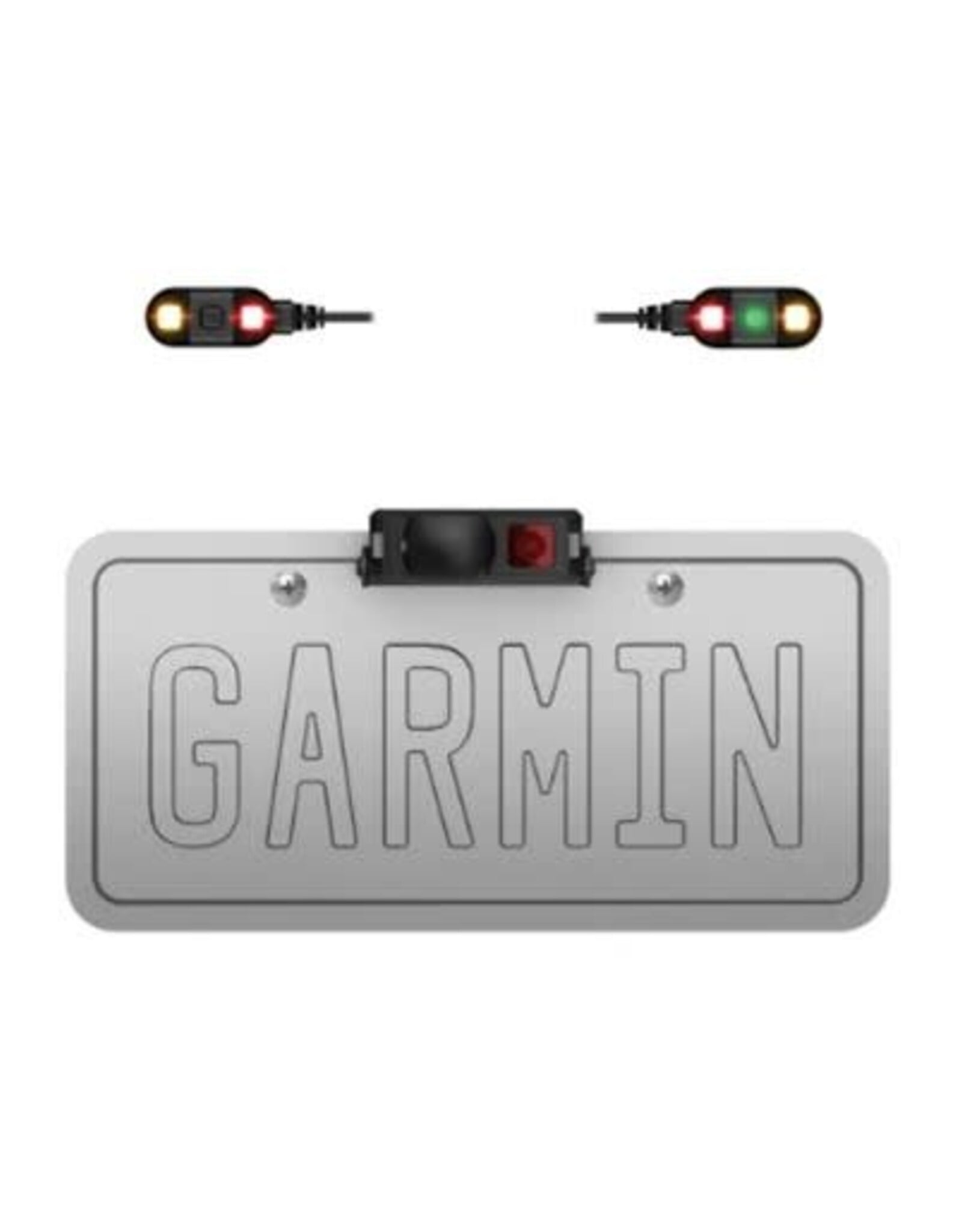

INCLUDES MOUNTING HARDWARE TO SECURE ON YOUR TRACK VEHICLE
General |
|
| Sensor dimensions (LxWxD) | 78.75 x 26.95 x 30.00 mm |
| Light dimensions (LxWxD) | 42.56 x 17.31 x 14.00 mm |
| Sensor weight, with cable, without mounts | 348.7 g |
| Light's weight, with cable, without mounts | 97.4 g |
| Radar mounts | versatile panel mount |
| Power source | Wired 12 V power (installation required) |
| Bluetooth™ | yes (for smartphone app) |
| Water rating | IP67 |
| Status indicator | yes |
| Power/Mode button | yes |
| Automatic shut down when parked | yes (after 10 min) |
| Radar detection distance | Approaching vehicles up to 197 ft (60 m) away |
| Radar detection angle (horizontal) | 170° |
| Minimum radar operational speed | 15 mph |
| Maximum radar operational speed | 177 mph (285 km/h) |
| Vehicle detection speed | Approaching vehicle speed from 0 to 43 mph (from 0 to 70 km/h) relative to your current speed |
| Light sensor for automatic brightness dimming | yes |
| Heads-up vehicle in blindspot alerts when moving | yes |
| Heads-up approaching vehicle alerts when moving | yes |
