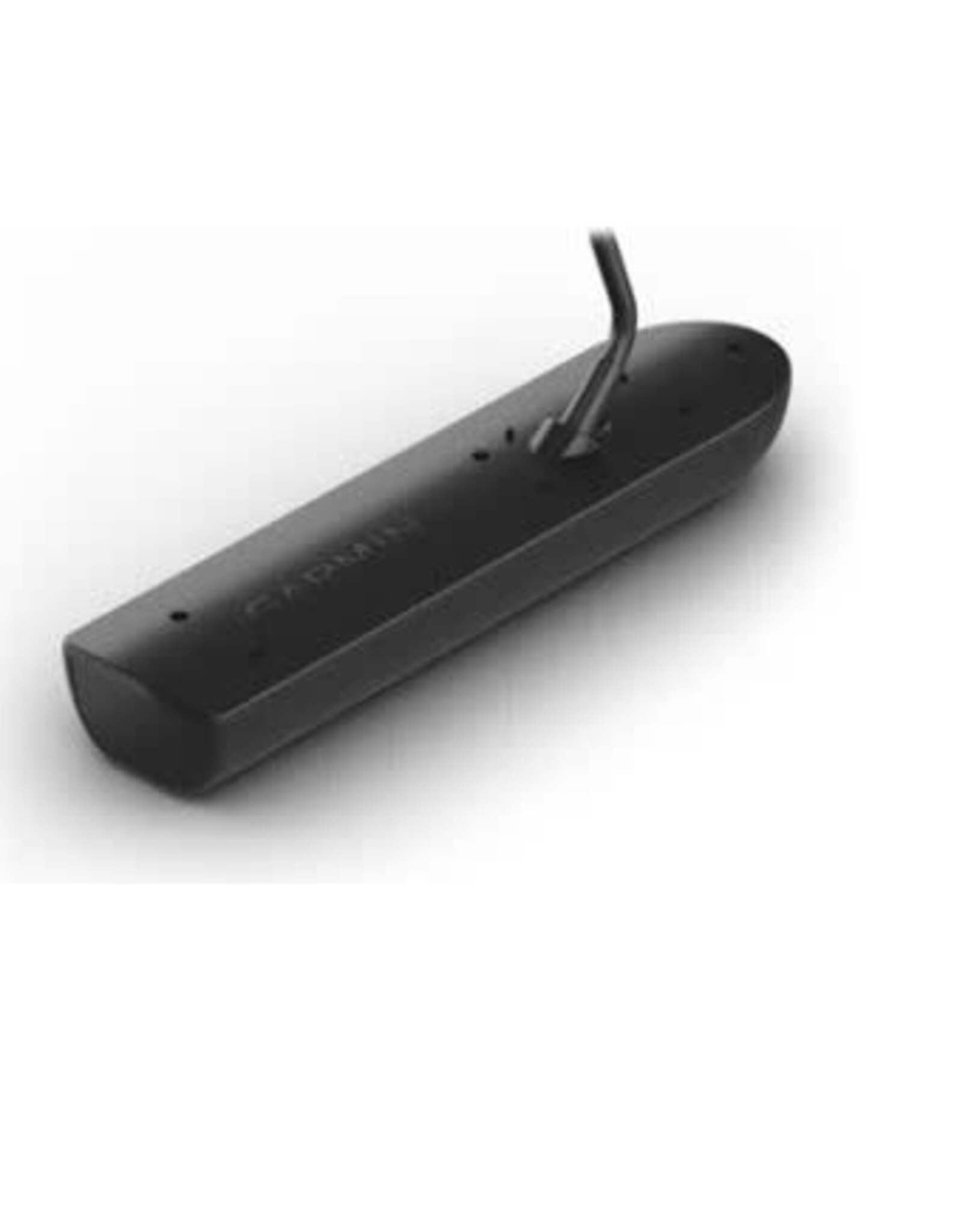

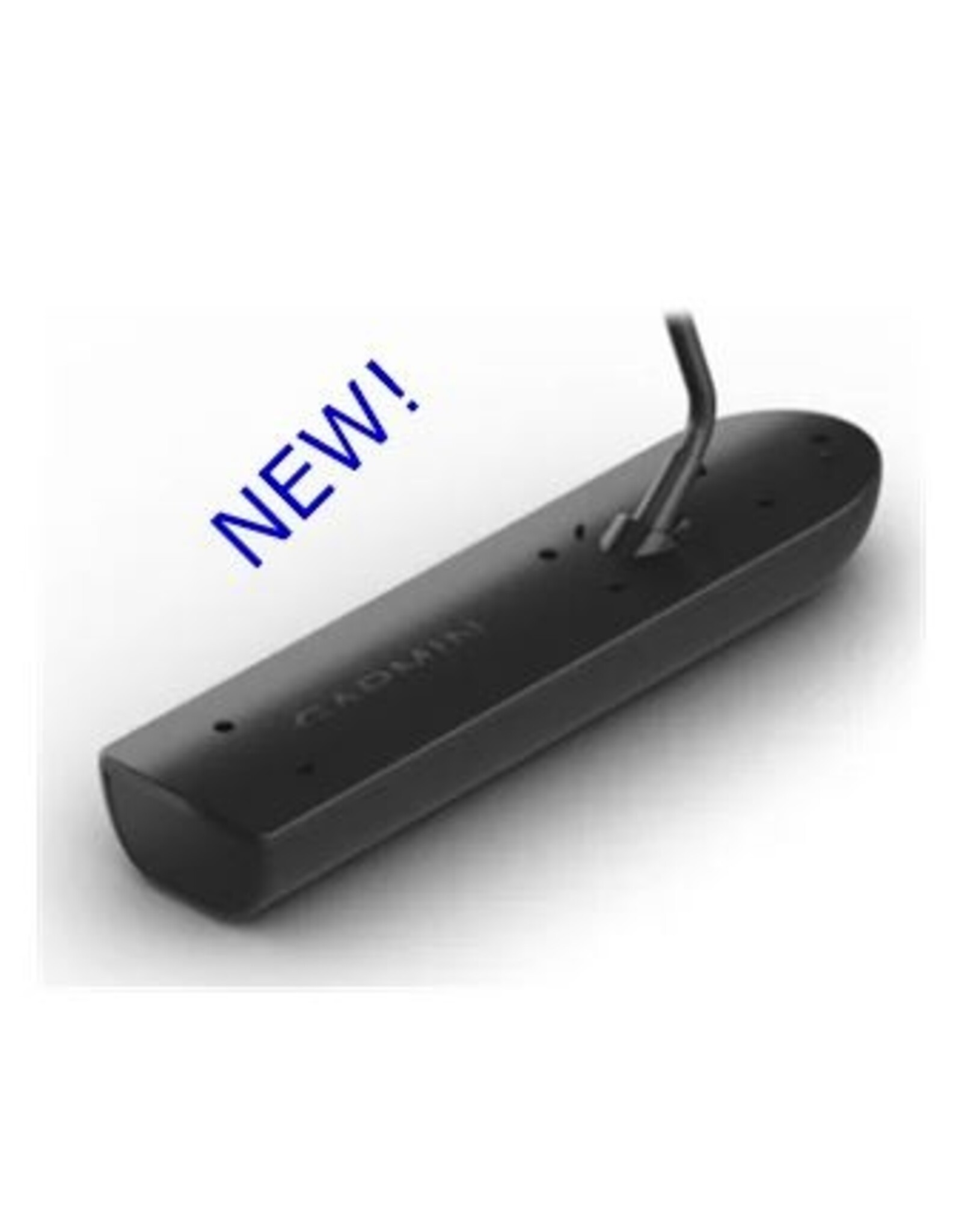

Use this transducer on your compatible Force® Kraken Trolling Motor. Please note, the cable length is designed for Force Kraken trolling motors with factory-installed transducer (black models). White 48-inch, 63-inch and 75-inch models require a separate extension cable purchase and a trolling motor mount or nose cone mount for the transducer. White 90-inch models should use a GT56UHD-TM and transducer replacement kit.
| General |
| Transducer frequency |
Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
| Transducer power |
Traditional 350 W; ClearVü/SideVü 500 W |
| Transducer beamwidth |
Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz |
| Transducer maximum depth |
Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft |
| Transducer cable length |
48", 63'' or 75'' |
| Transducer depth/speed/temperature |
Depth and temperature |
| Transducer number of pins |
12 |
| Transducer Support |
| Transducer frequency |
Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100) |
