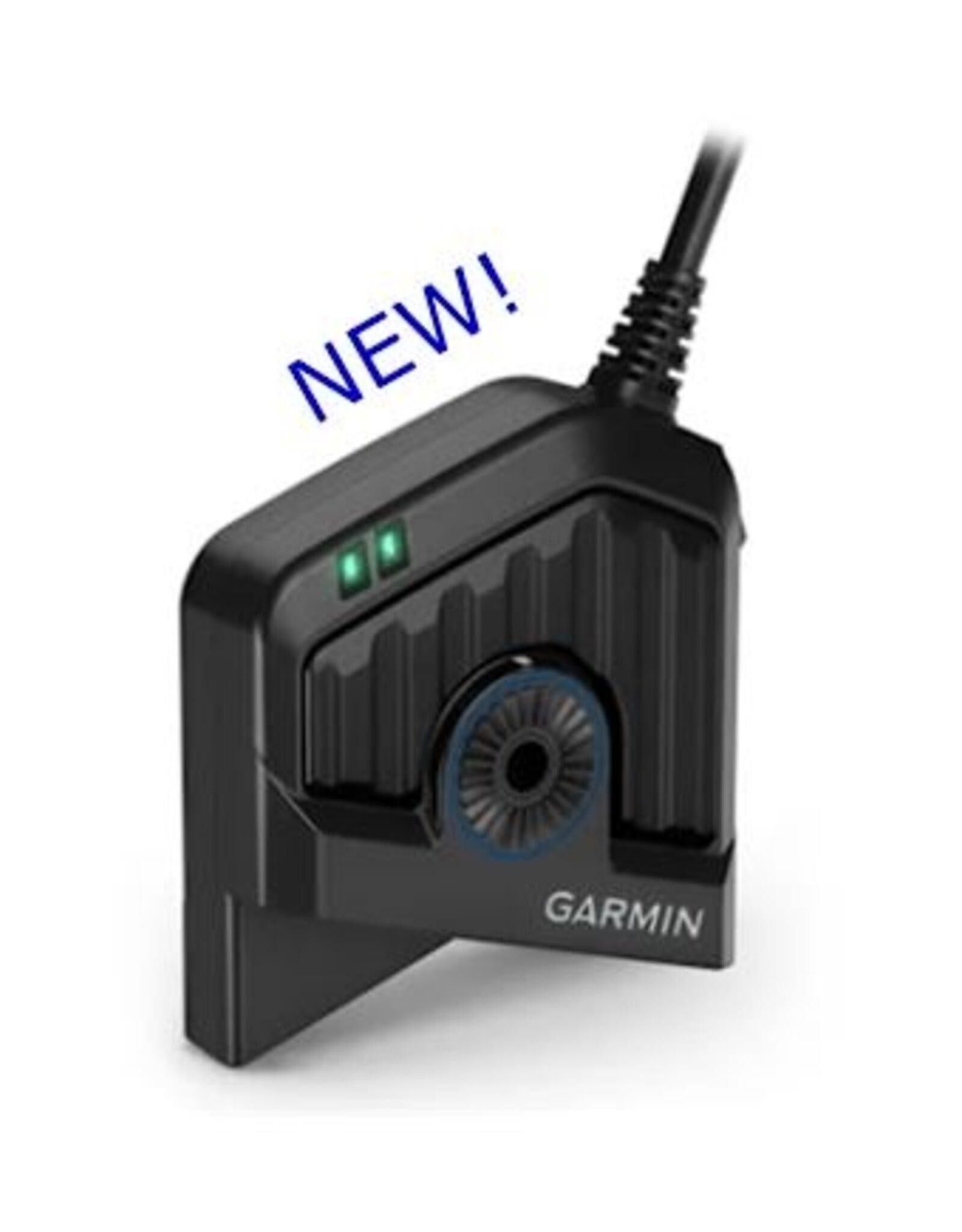

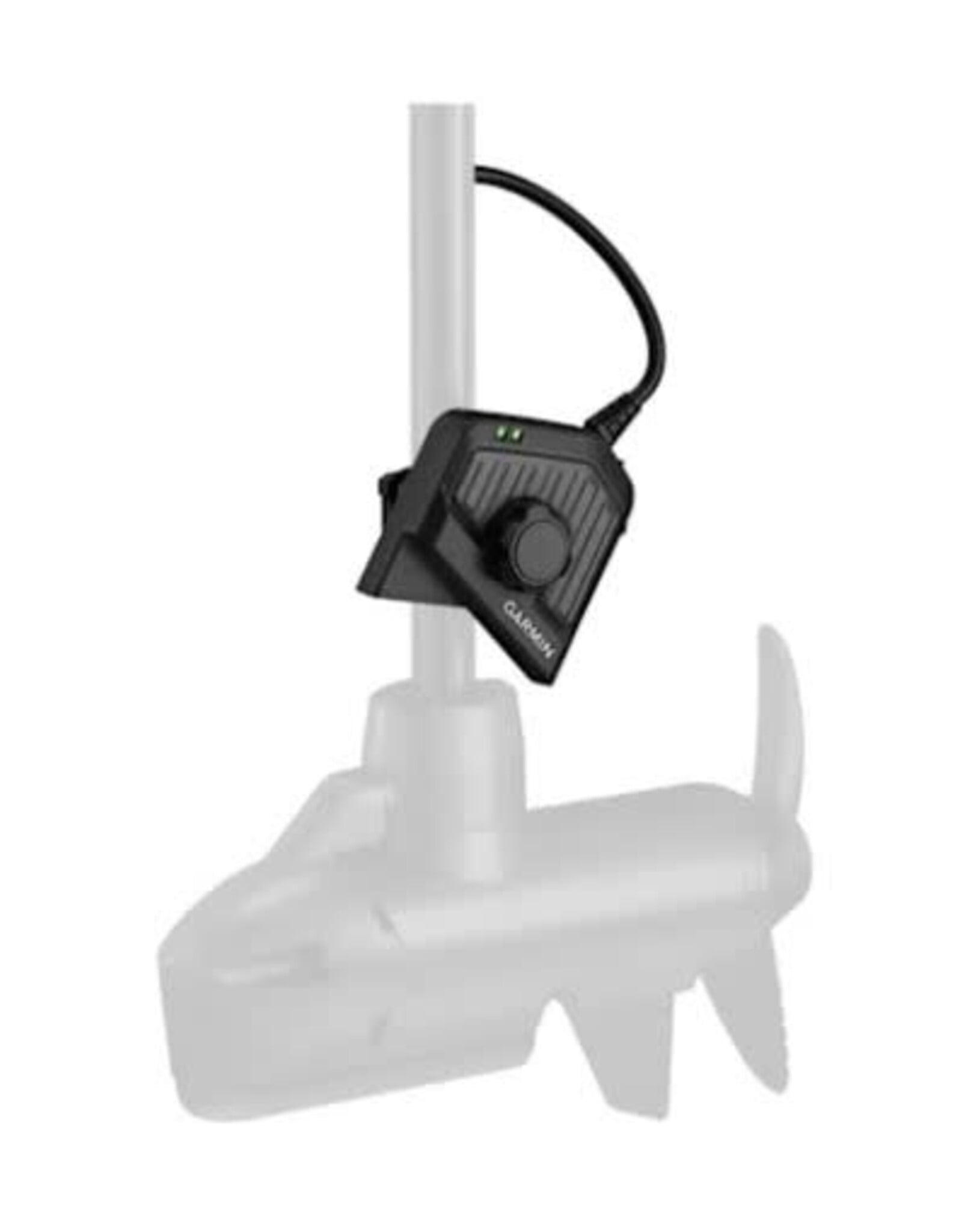

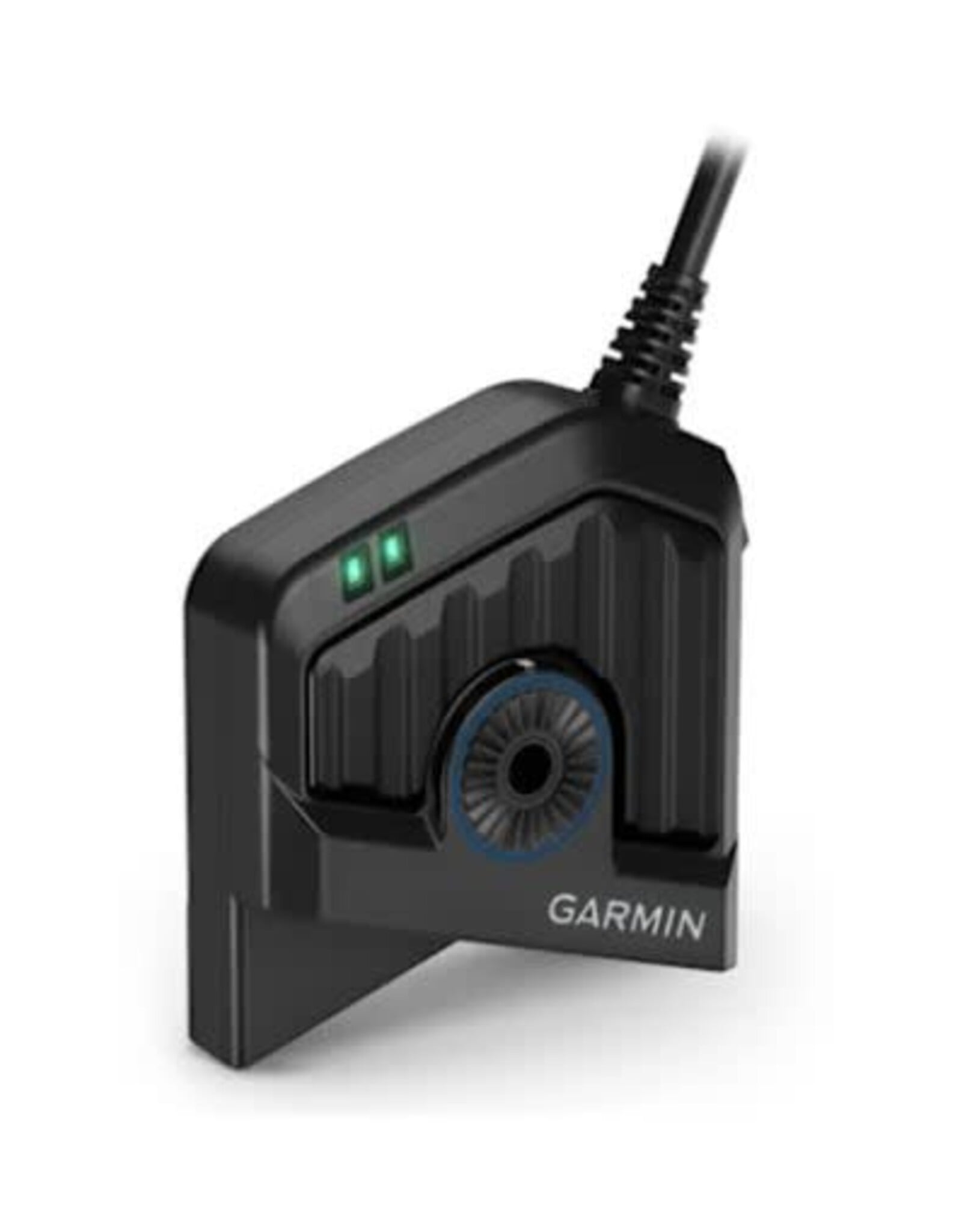

LiveScope™ 2 HD Transducer
| Article number: | 10715 |
| Delivery time: | Ships in 3 to 5 days - not stocked in store |

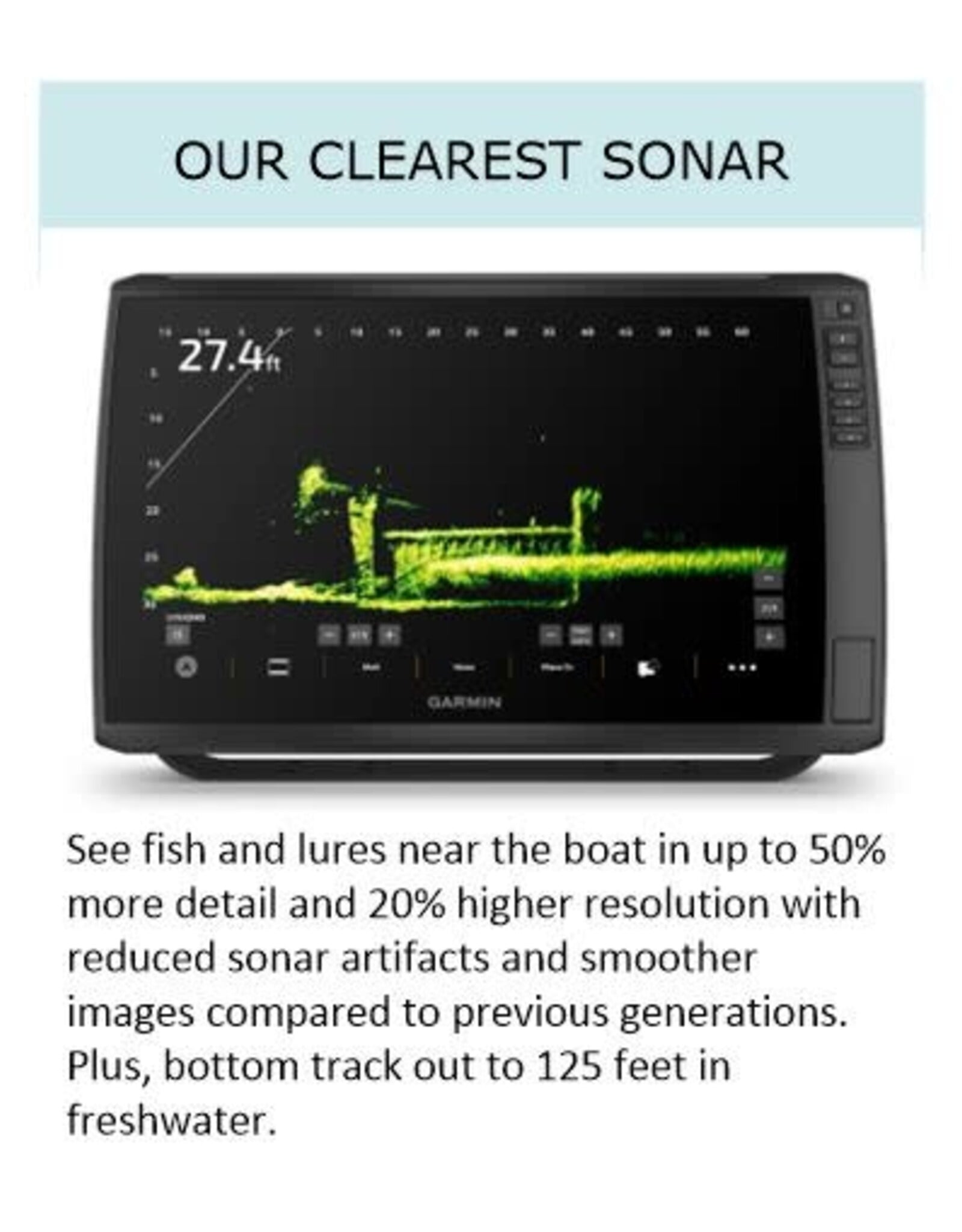

OUR CLEAREST SONAR EVER

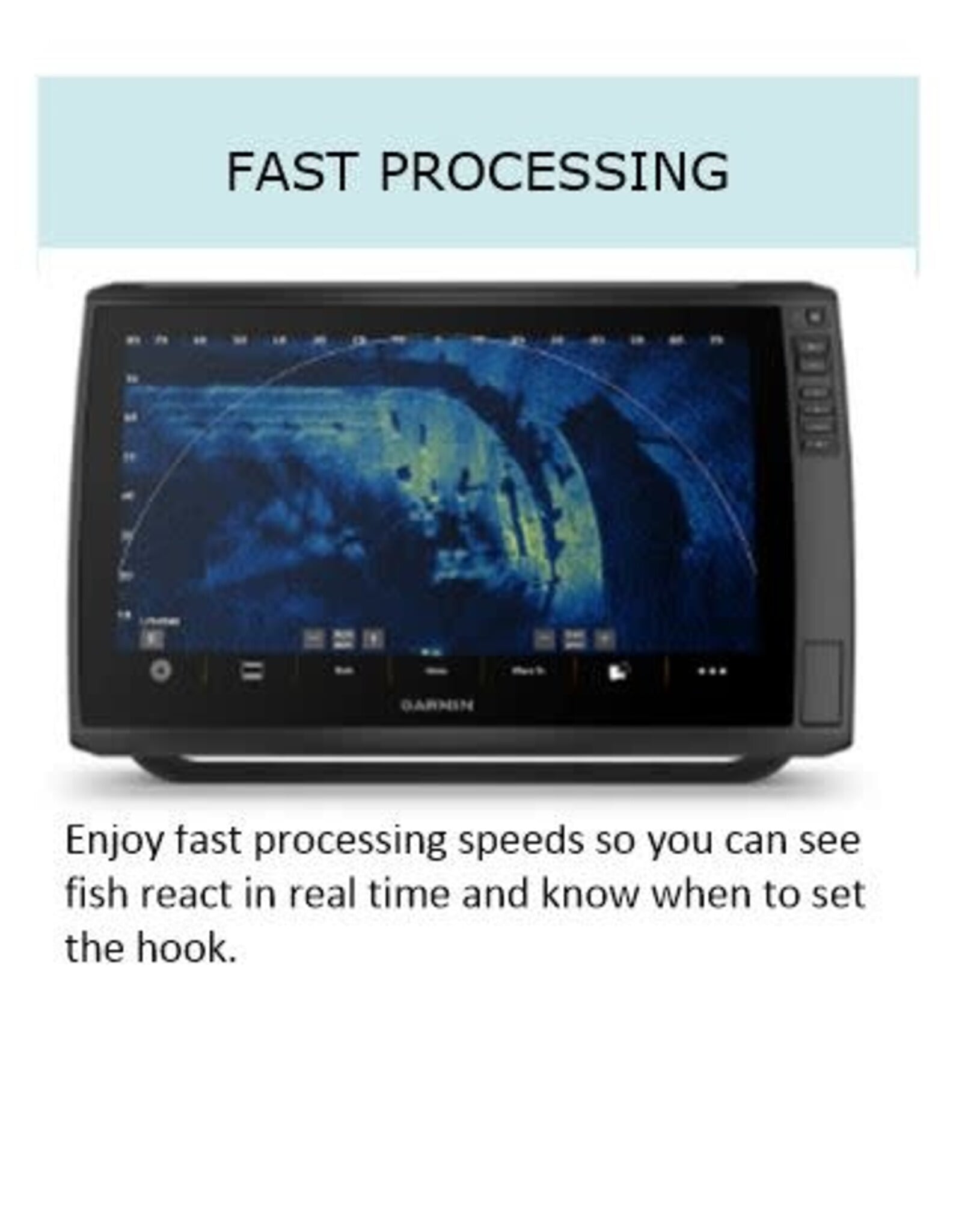

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.
| Specifications | |

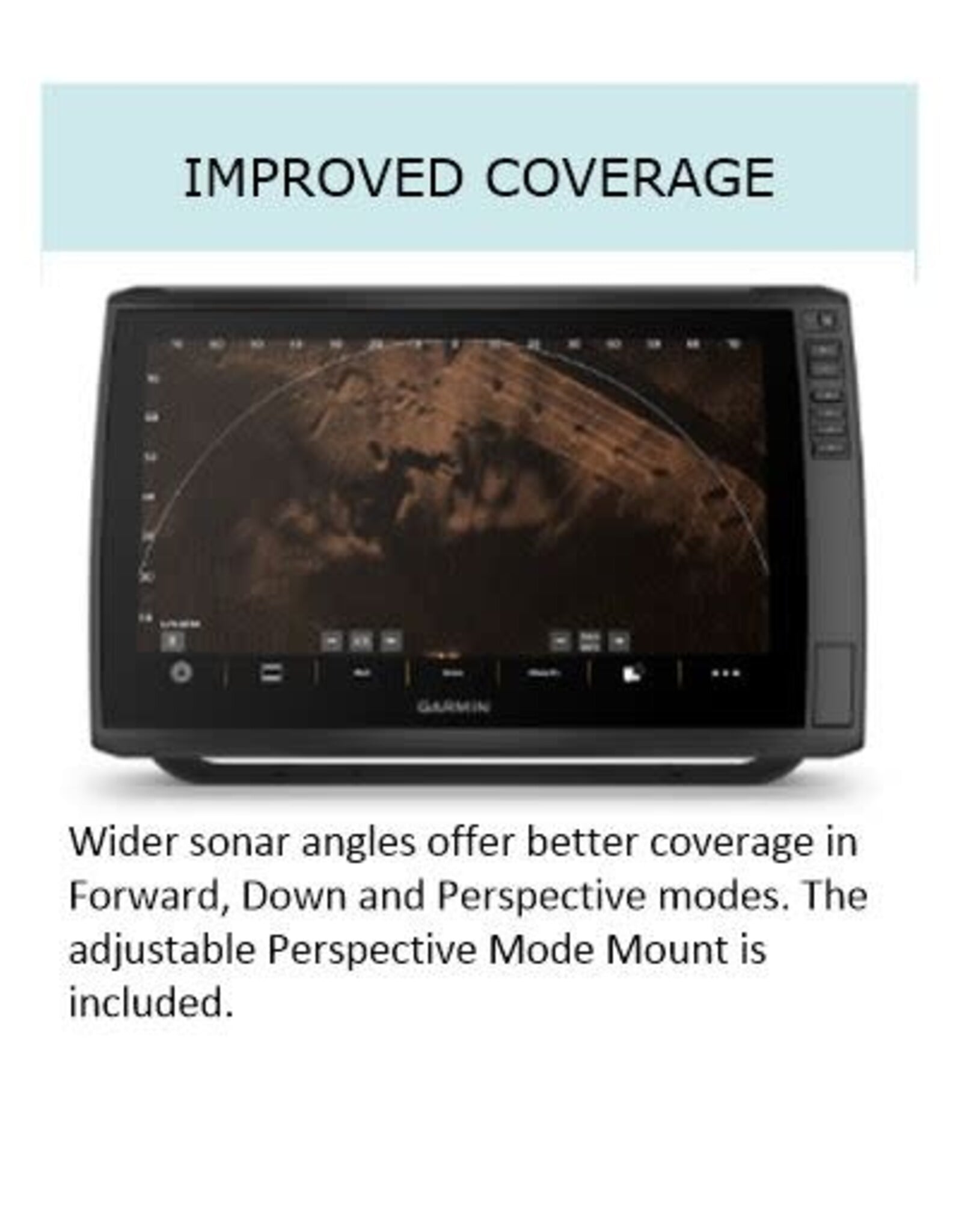

| Transducer beamwidth | Forward: 20° x 165° |
| Down, Perspective: 20° x 180° | |
| Transducer cable length | 5.5 m (18 ft) |
| Transducer number of pins | 7 |
| Dimension | 5.2” x 5.3” x 1.9” (13.3 x 13.4 x 4.8 cm) |
| Weight | 3.62 lbs (1.646 kg) |
| Temperature range | Operating: 0 C to 40 C |
| Electrical Features | |
| Power input | 10-35 V |
| Power usage | 32 W max |
| Fuse | 7.5 A |
| Compass-safe distance | 4" |
| Sonar Features | |
| Frequency | 850 kHz-1600 kHz |
| Transmit power | 521 W |
| Maximum depth | Down and Forward: 125’ |
| Sonar Type | Live |
| Target Separation @ 100' | 12.6" |
| Target separation @ 30' | 3.8" |

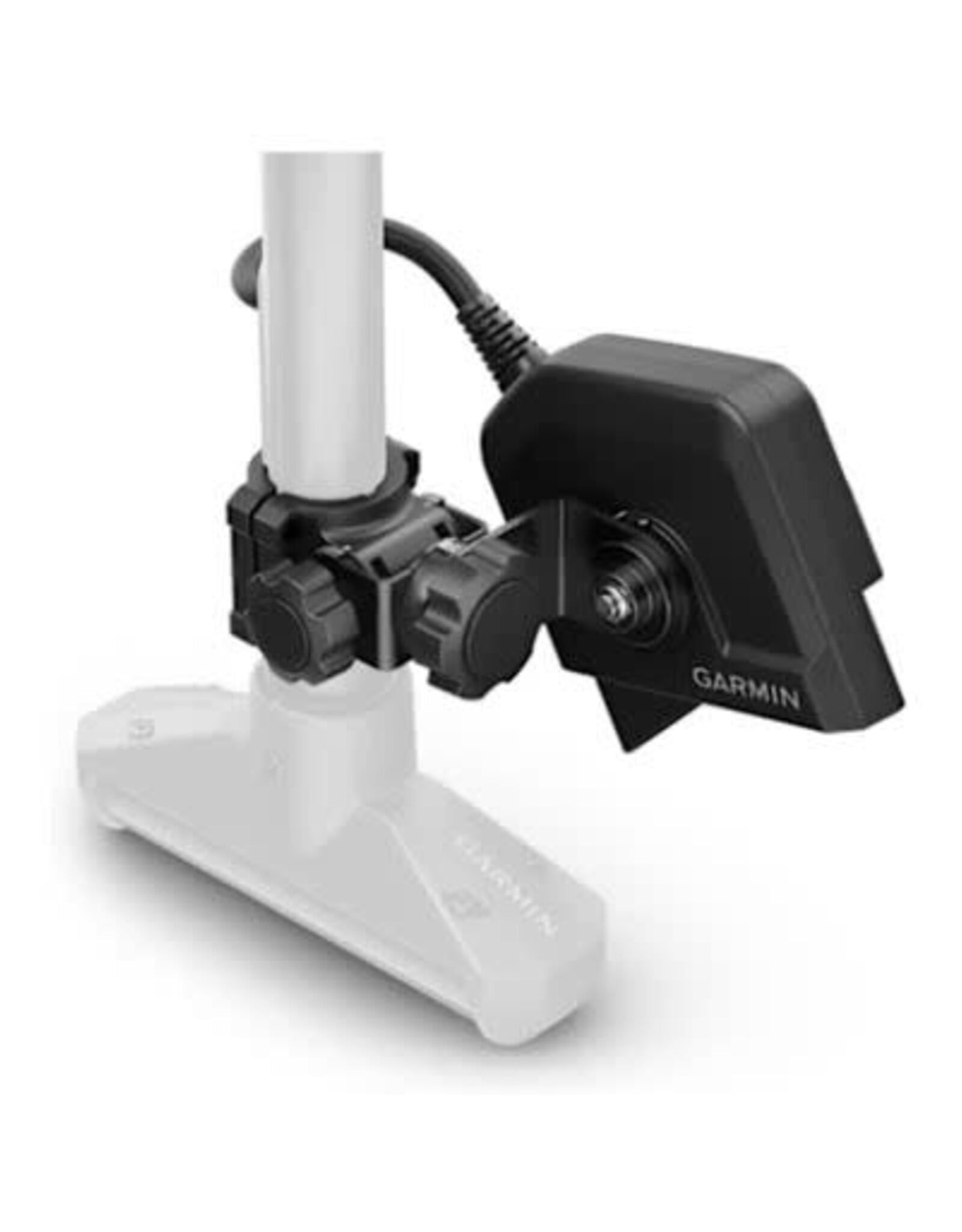

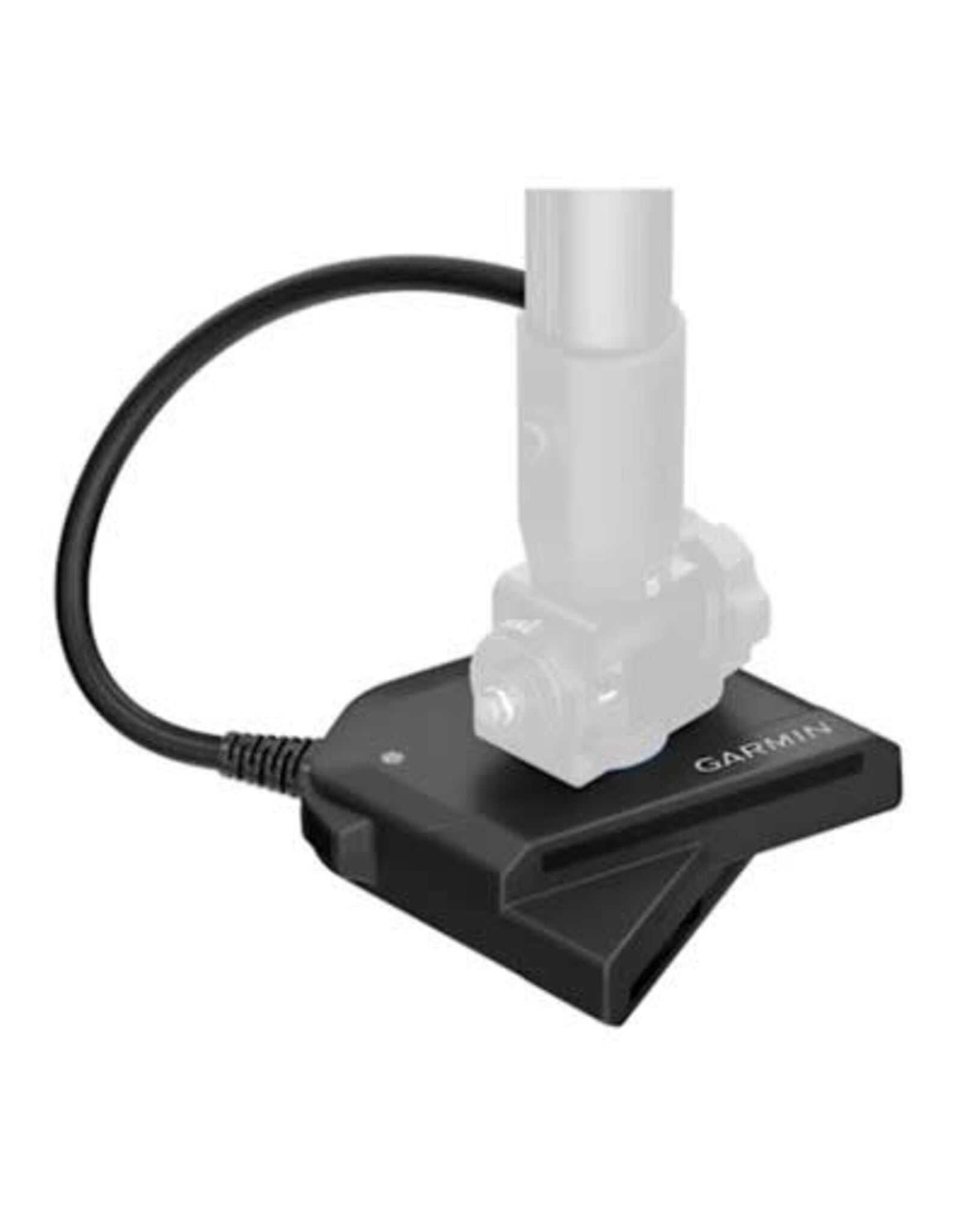

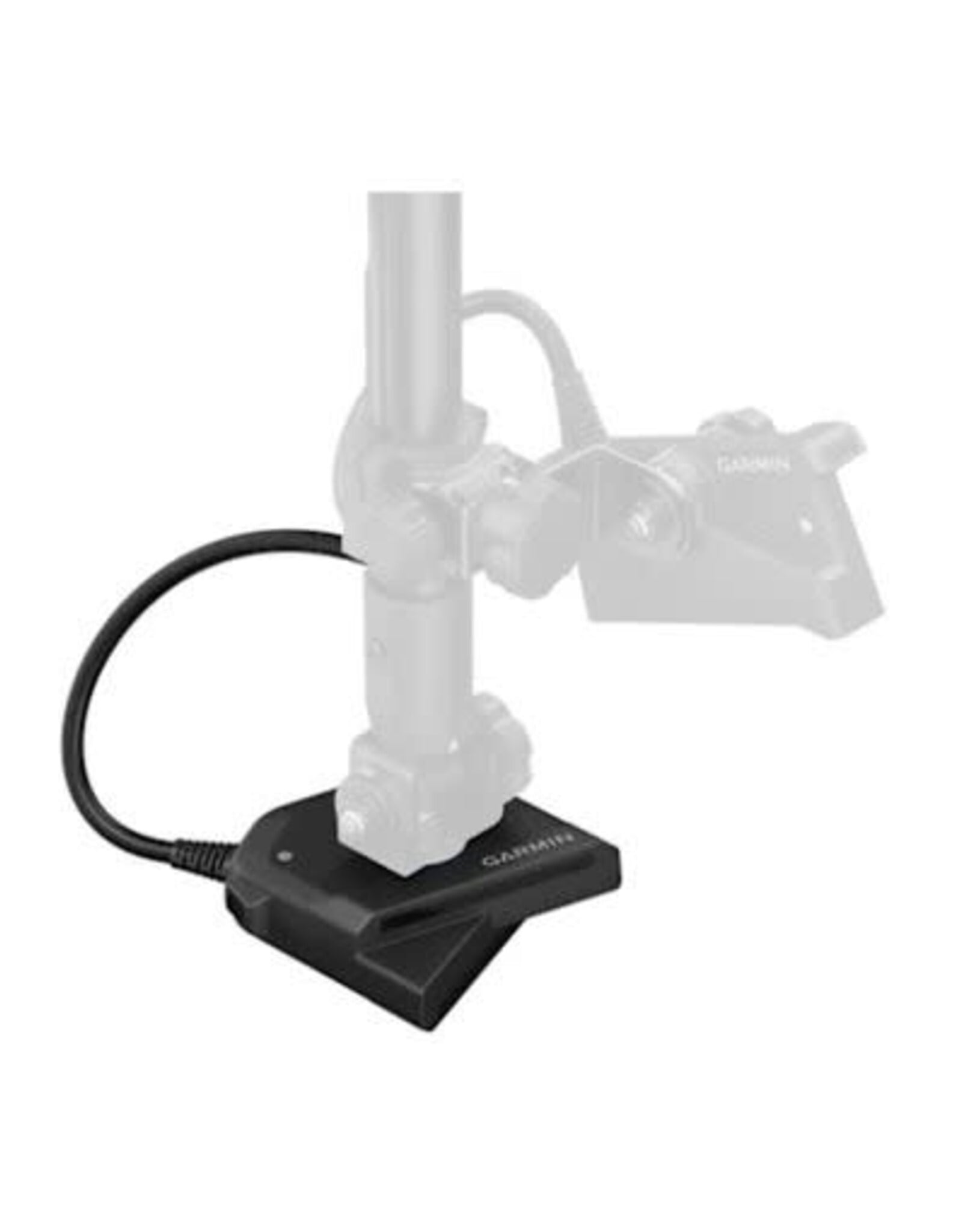

| Perspective Mode Mount Included | yes (adjustable angles) |

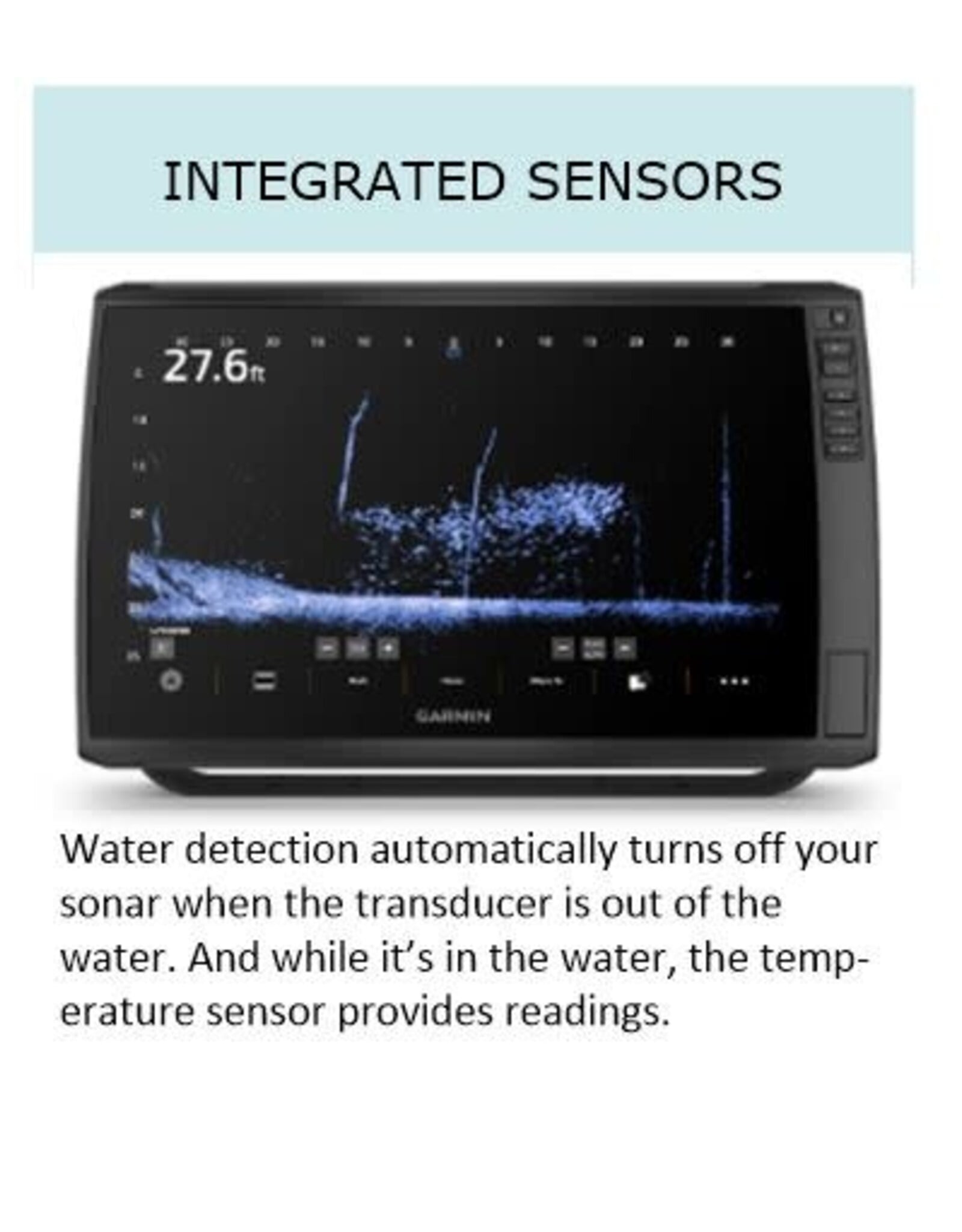

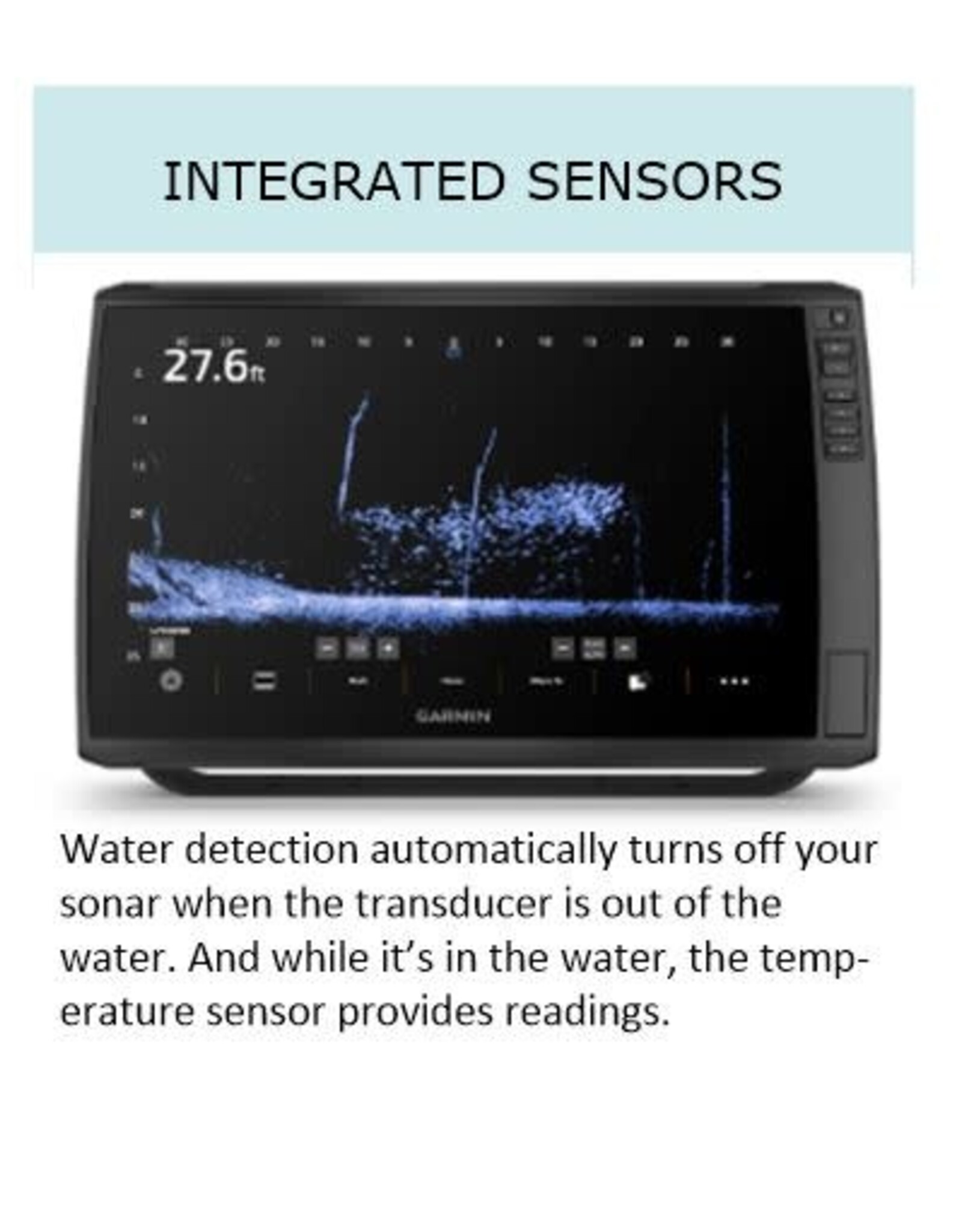

| Water detection transmit control |
Yes |
| Networking & Connections | |

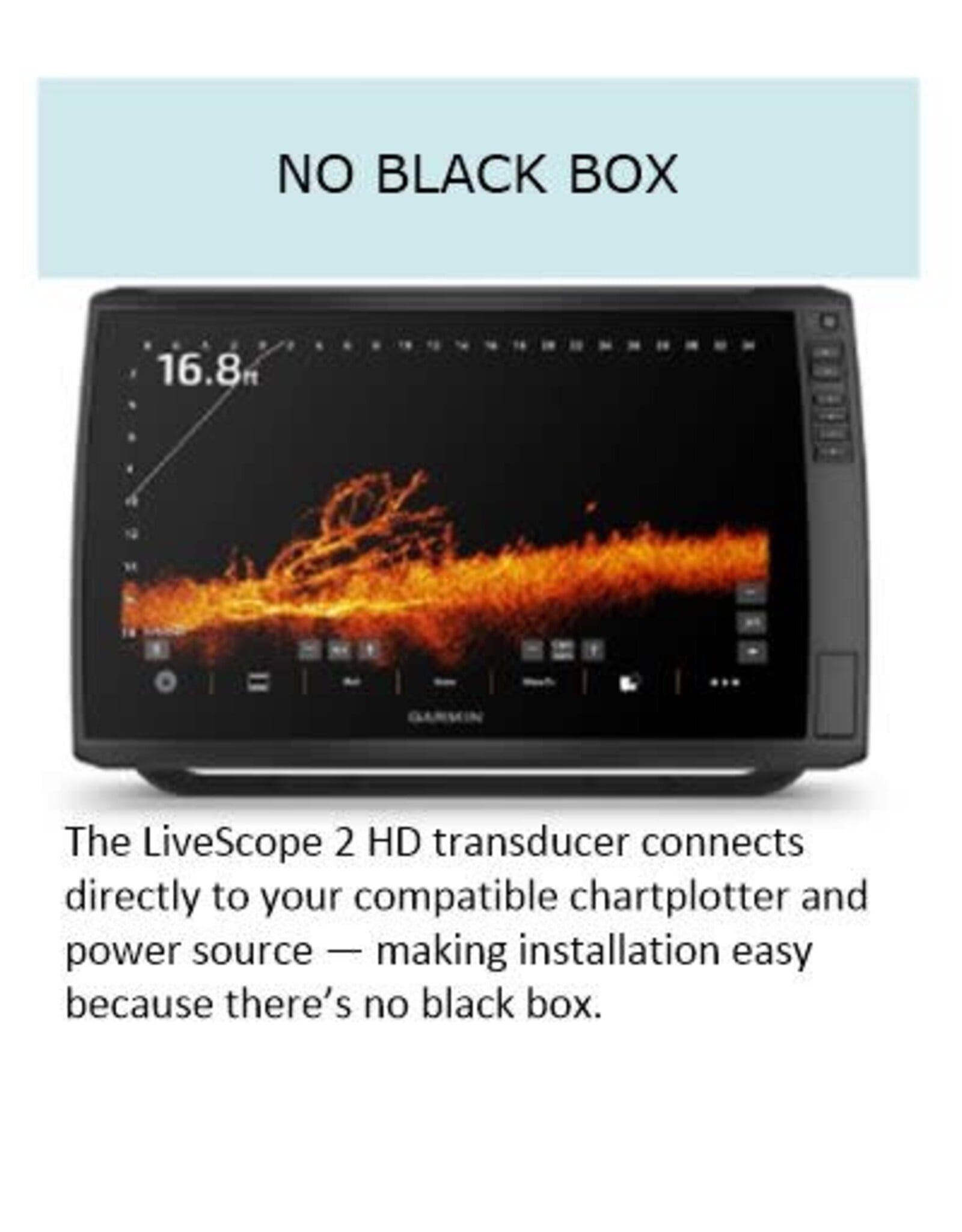

| Garmin Marine Network Ports | 1 BlueNet (small connector) with GMN1 Adapter |
| Power connection | yes (2-wire) |
